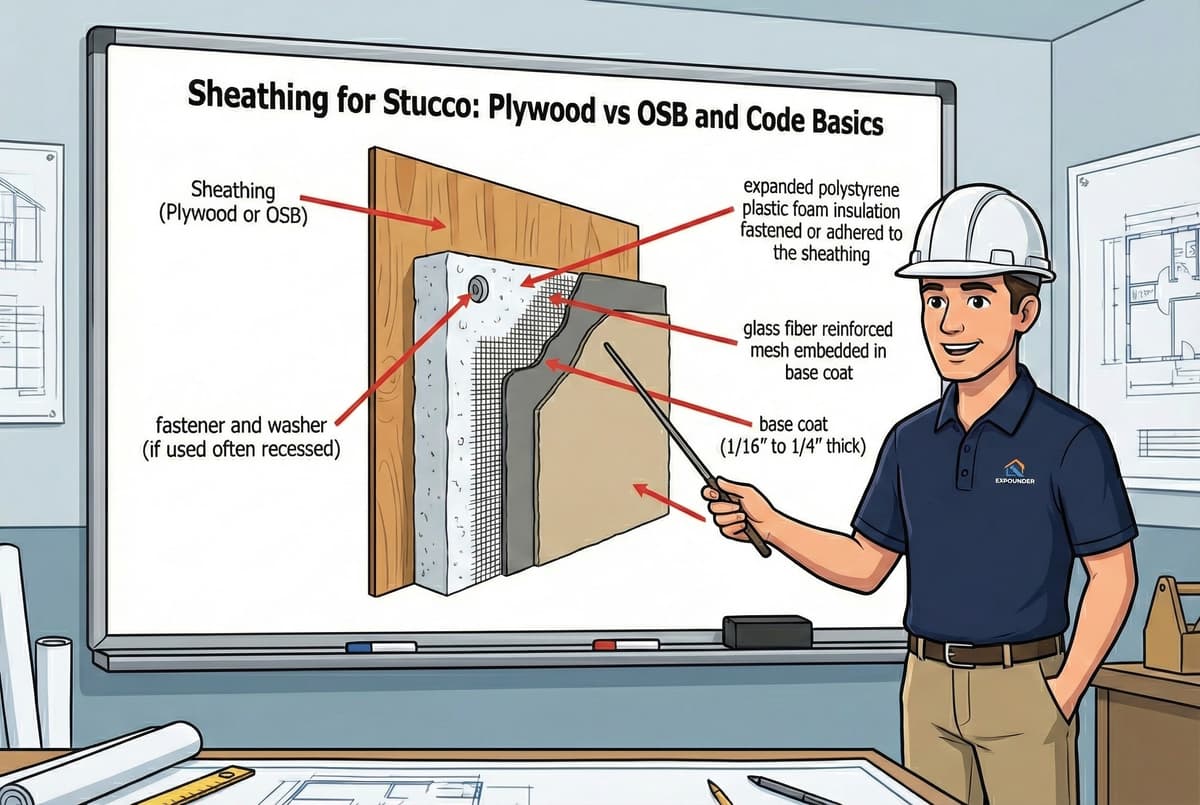

Sheathing for Stucco: Plywood vs. OSB and Code Basics
Before we can apply waterproof paper, wire lath, or cement, we must have a solid substrate. This is called Sheathing. In Southern California, sheathing serves two critical purposes: it provides a nailing surface for the stucco system, and more importantly, it acts as the Shear Wall that keeps your home from collapsing during an earthquake.
Choosing the wrong sheathing material—or installing it incorrectly—can lead to buckling walls, cracked stucco, and structural failure. This guide breaks down the two primary wood substrates used in Los Angeles and Orange County construction.
1. The Role of Sheathing
According to the International Residential Code (IRC) and ASTM C1063, wood structural sheathing must be used in conjunction with a Weather-Resistive Barrier (WRB). It provides:
- Structural Support: Lateral (side-to-side) strength for wind and seismic loads.
- Fastening Surface: A continuous wood base to staple the lath into, rather than just hitting studs.
- Flatness: A consistent plane for the stucco to lay against.
Free Assessment
Noticing Stucco Damage?
Get a free on-site assessment from a licensed contractor. $0 deposit, no obligation.
GET FREE ASSESSMENT2. Material Comparison: Plywood vs. OSB
Both are code-compliant, but they behave differently when wet.
| Feature | Plywood (CDX) | OSB (Oriented Strand Board) |
|---|---|---|
| Moisture Resistance | High (Less likely to swell) | Moderate (Edges can swell if soaked) |
| Durability | Excellent in wet climates | Good with proper WRB protection |
| Cost | More Expensive | More Affordable |
| Weight | Lighter | Heavier/Denser |
For coastal zones or custom homes where budget allows, we prefer CDX Plywood because it is more forgiving if it gets wet during construction. However, OSB is the industry standard for production homes and performs perfectly well if the waterproofing paper is installed correctly.
3. The 1/8" Gap Rule
This is the most common installation error. Wood expands when it absorbs moisture (from the wet stucco application or humidity).
The Mandate: You must leave a 1/8-inch gap (the width of a 10d nail) between all sheets of plywood or OSB.
The Consequence: If you butt the sheets tight, the expansion will cause the boards to buckle outward ("telegraphing"), cracking the stucco finish immediately.
4. Fastening Schedule
Shear walls must be nailed off according to a specific schedule to provide seismic strength.
Typical Schedule: Nails every 6 inches on the edges of the panel, and every 12 inches in the field (middle) of the panel.
Fastener: Corrosion-resistant nails are required to prevent rust from bleeding through the paper.
Conclusion: The Backbone of the System
You cannot treat OSB the same way you treat Plywood. The spacing, nailing, and waterproofing must be precise. At Stucco Champions, we inspect the sheathing first. If the bones are rot-free and spaced correctly, the skin will last a lifetime.
